dinkey 34
A 34-key column-staggered wireless split keyboard. Hot-swap switches, controller, and display. Built for a clean, minimal look without compromising on a full QWERTY layout.
Wireless Builds
Keys: 34
Layout: 3×5 column stagger + 2 thumb keys per side
Switches: Kailh Choc V1 (PG1350)
Controller Nice!Nano v2 (nRF52840), (hot-swap)
Display: Nice!View (hot-swap)
Sockets: Mill-Max low profile
Connectivity: Bluetooth 5.0 / USB-C
Battery: 110mAh LiPo
Split: Wireless BLE — no TRRS cable required
Firmware: ZMK / ZMK Studio
Case: Optional and not required
Wired Builds
Keys: 34
Layout: 3×5 column stagger + 2 thumb keys per side
Switches: Kailh Choc V1 (PG1350)
Controller Nice!Nano v2 (nRF52840), (hot-swap)
Display: Nice!View (hot-swap)
Sockets: Kahil (hot-swap)
Connectivity: Bluetooth 5.0 / USB-C
Split: USB-C (TRRS split cable included)
Firmware: QMK / Vial
Case: Optional and not required
firmware
The Dinkey 34 keymaps are fully customizable without touching any programming.

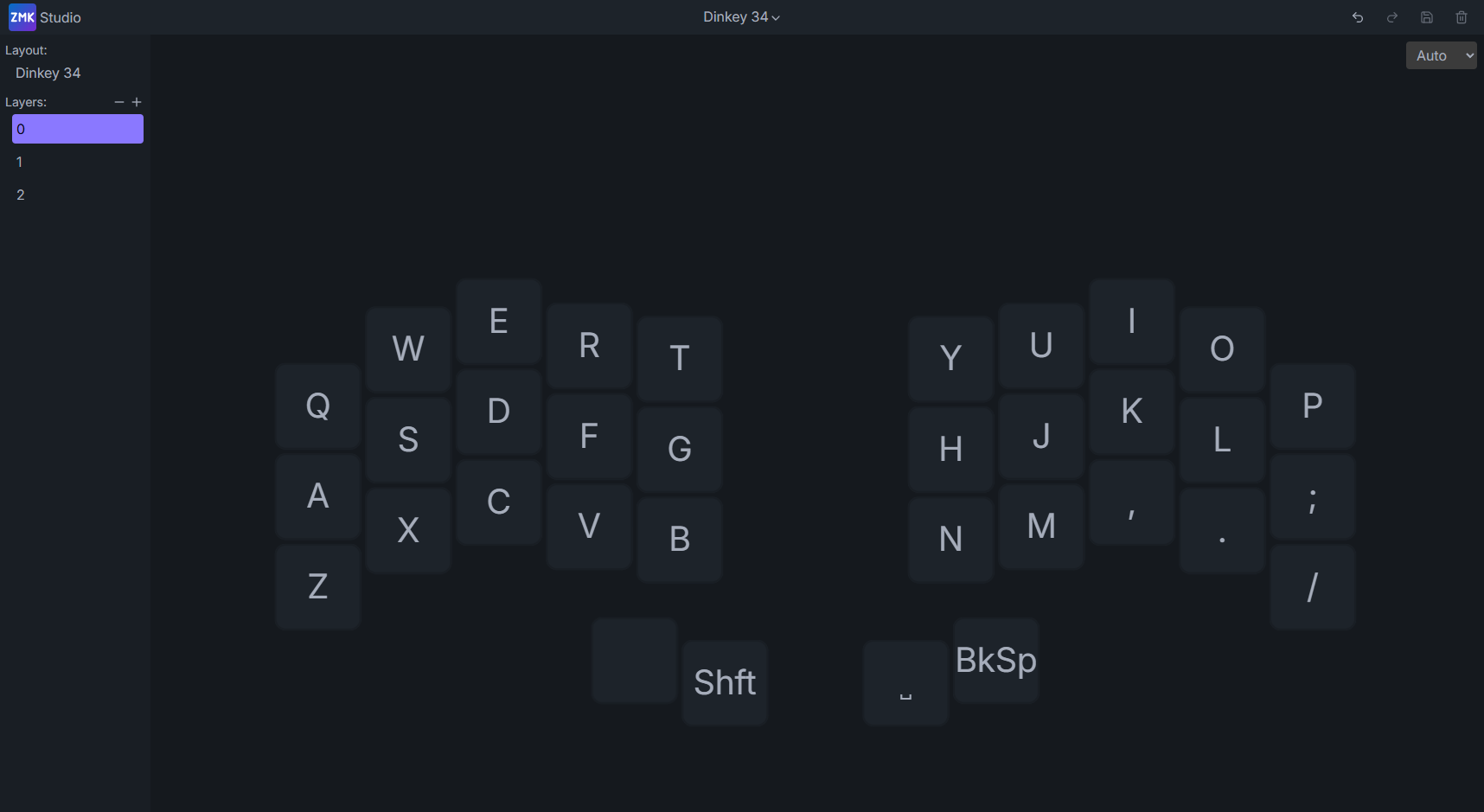

Wireless (ZMK): Remap keys visually in your browser using ZMK Studio — just plug in via USB and connect. Changes save directly to the keyboard.

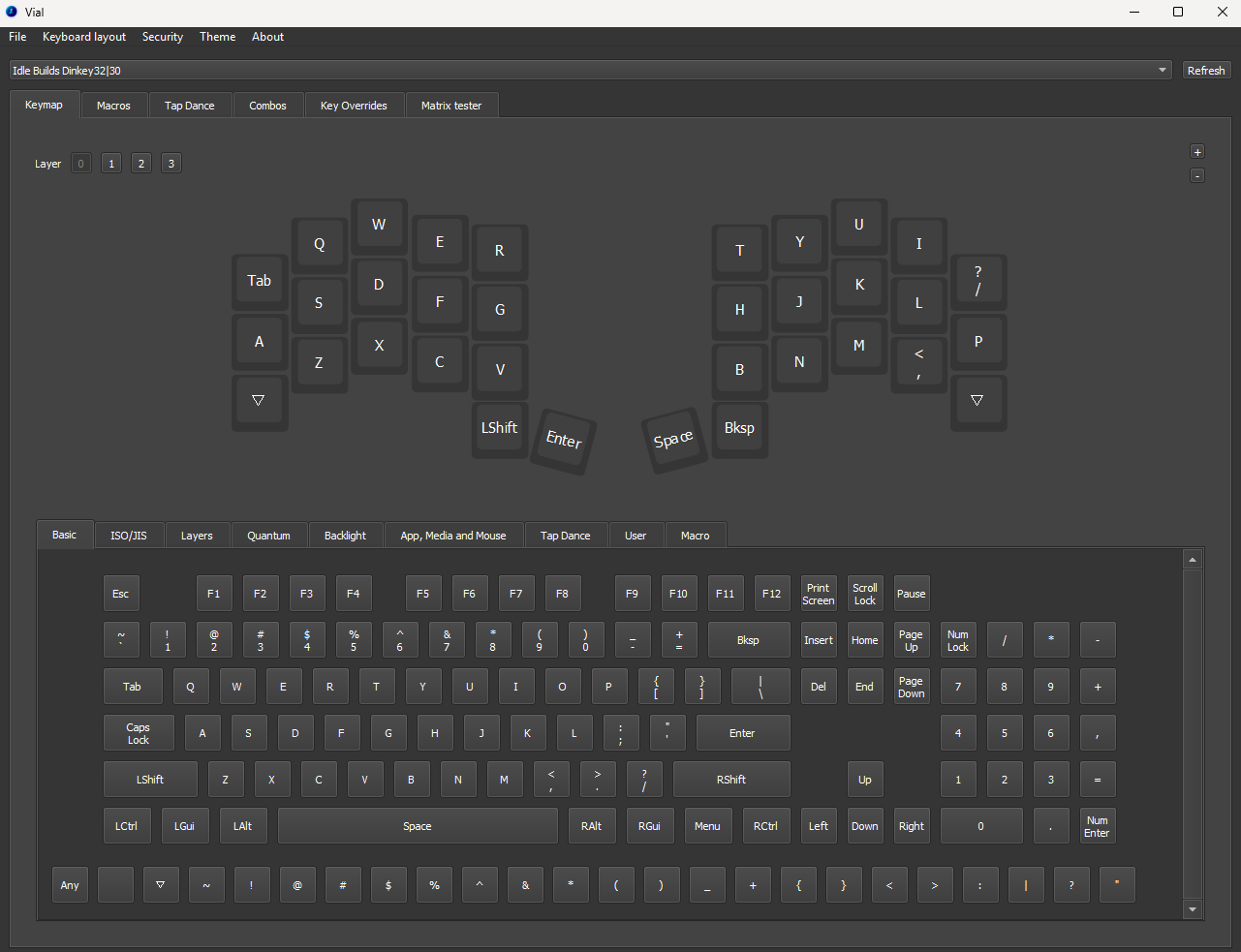

Wired (QMK / Vial): Edit your keymap live using Vial — no reflashing required. Full QMK support available.
Firmware source and build instructions are available on GitHub.
Build Options

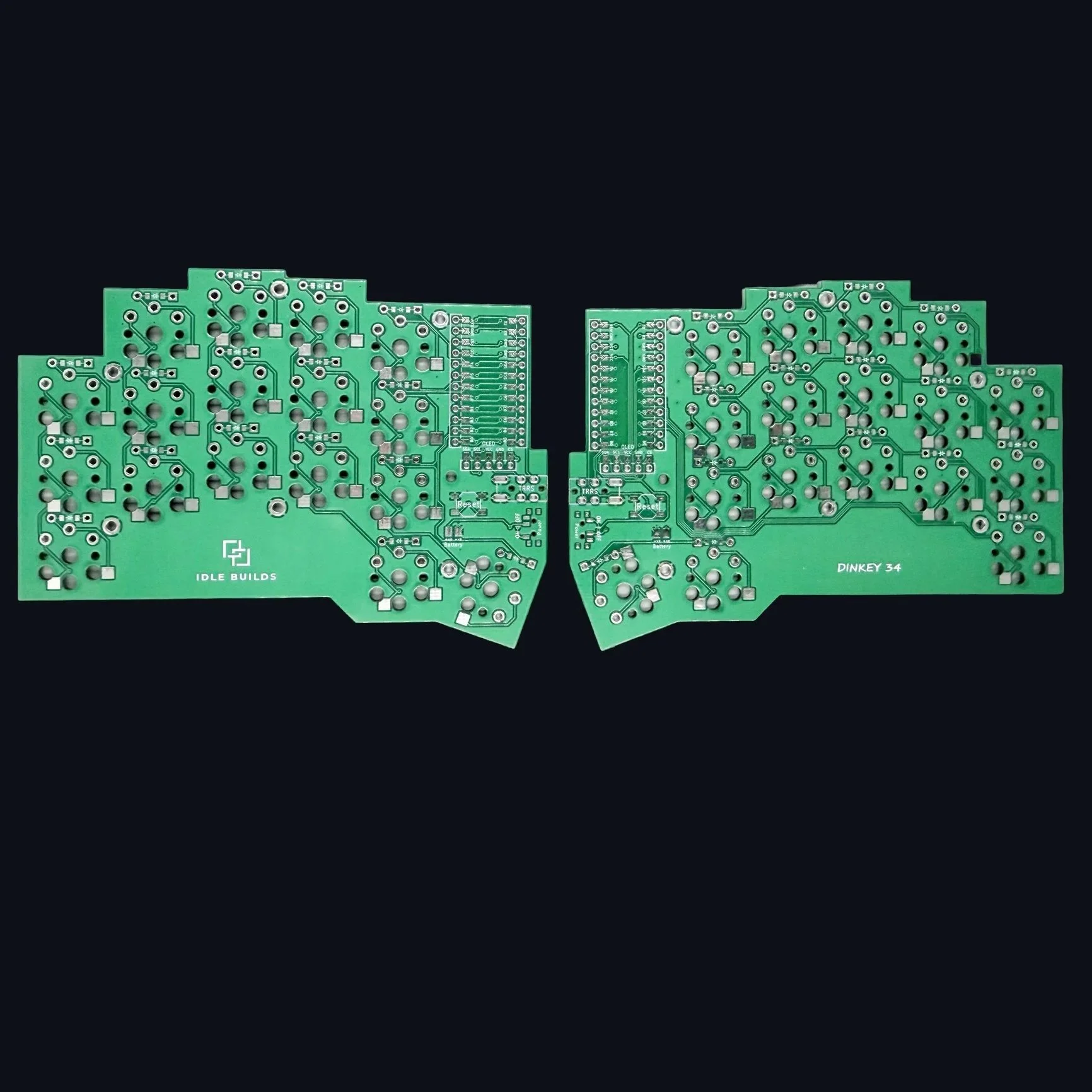

Includes: PCB set (left & right), Pro Micro controllers (×2), Kailh Choc V1 hotswap sockets, diodes, TRRS jacks, reset buttons, and mounting hardware.
3d printed case is not included with complete build and is an optional item below.

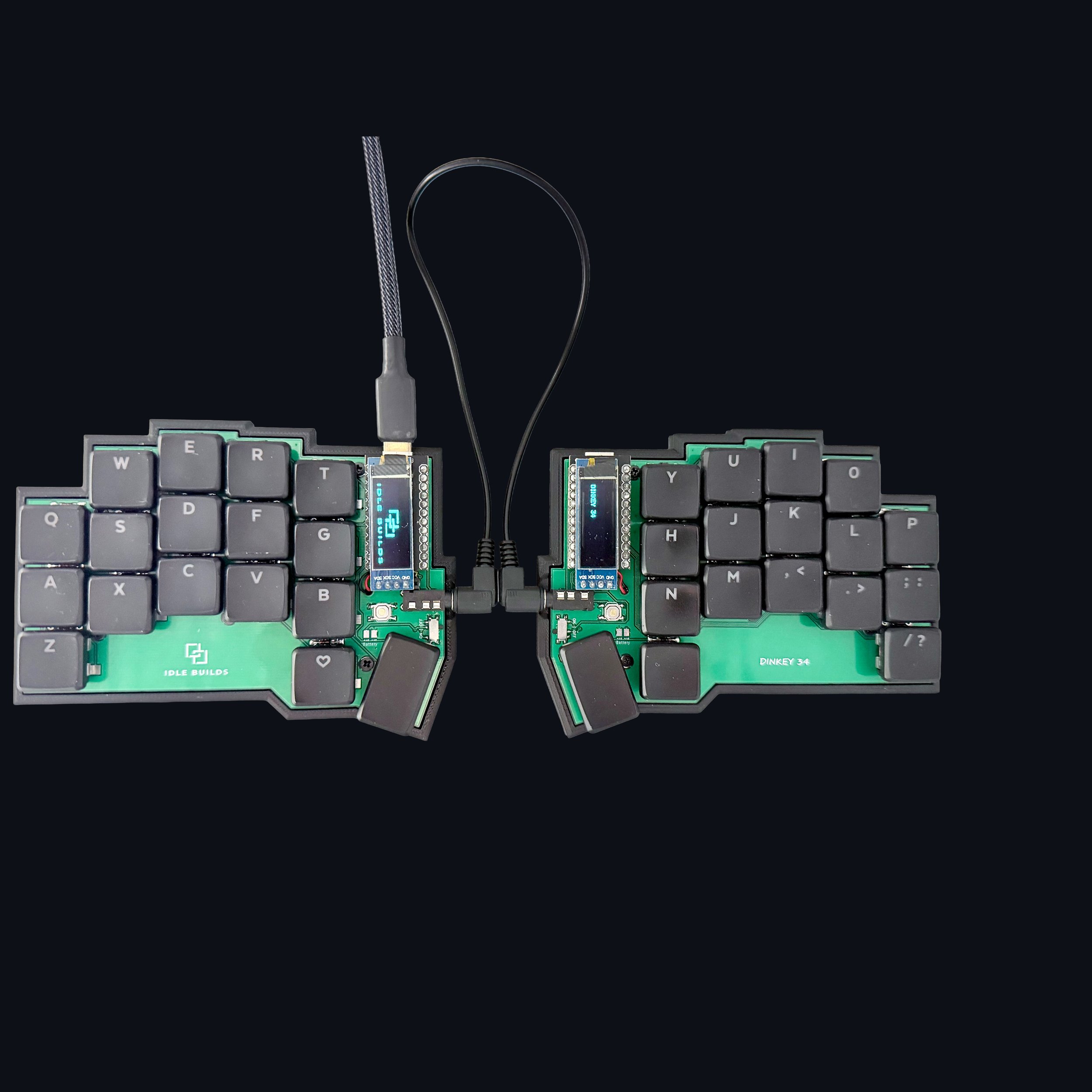

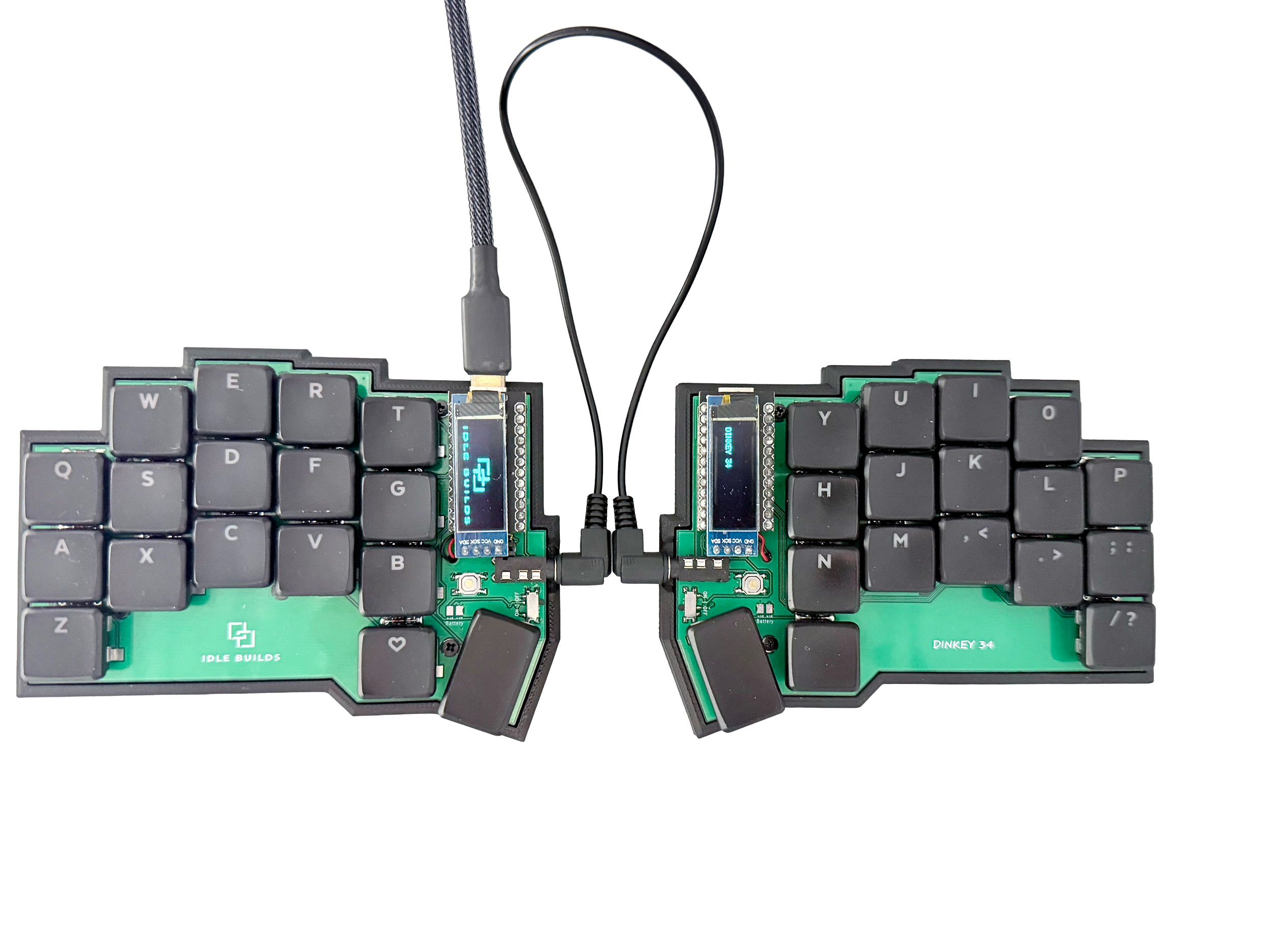

Fully assembled and pre-flashed Dinkey 34. Ready to go out of the box, just install switches.
3d printed case is not included with complete build and is an optional item below.
Includes: PCB set (left & right), Nice!Nano v2 controllers (×2) with Mill-Max hotswap sockets, diodes, LiPo batteries (×2), reset buttons, and mounting hardware.
3d printed case is not included with complete build and is an optional item below.

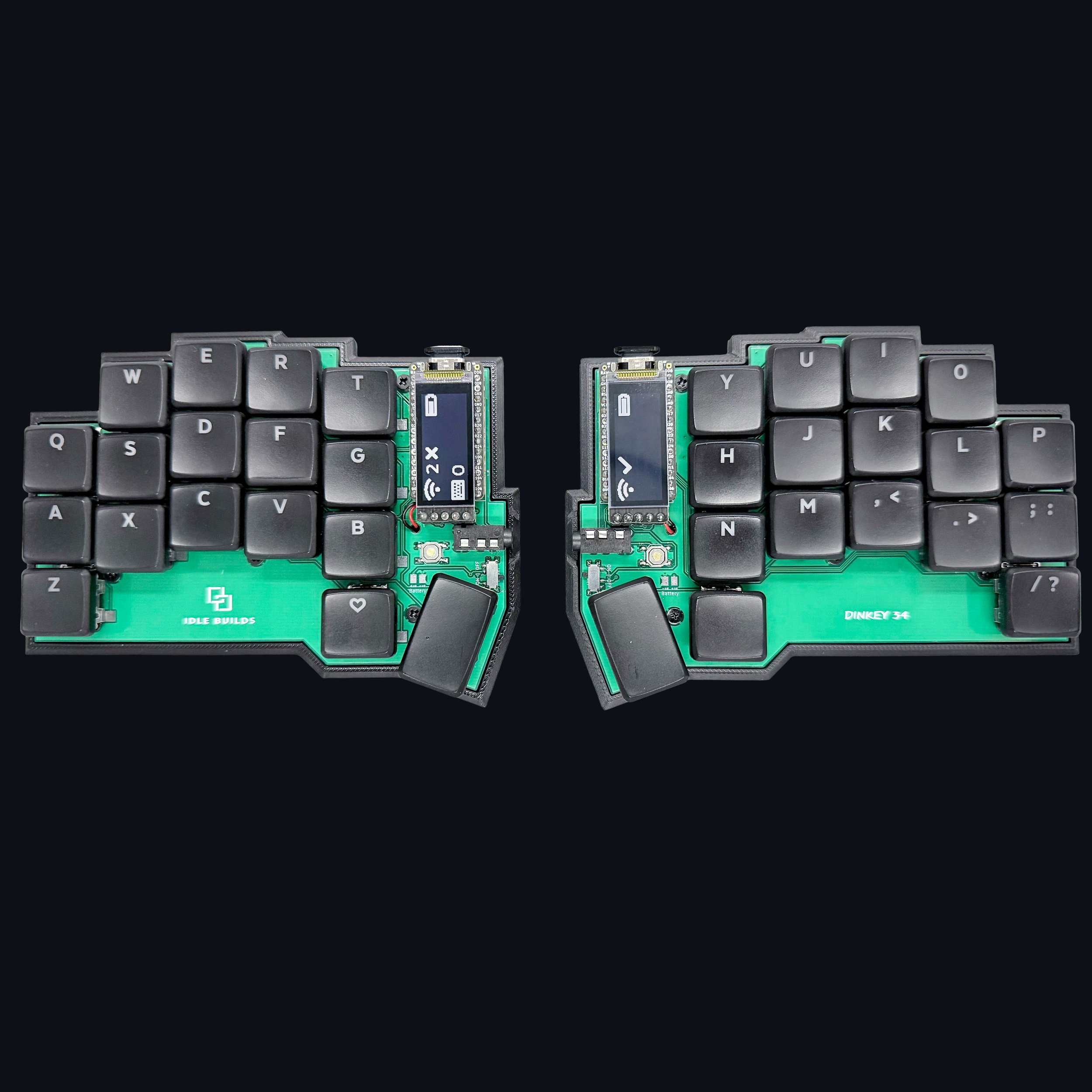

Completely assembled wireless Dinkey 34 with a pre-flashed nice!nano. Ready to go out of the box, just install switches.
3d printed case is not included with complete build and is an optional item below.
