dinkey 32/30
A 30 or 32-key wireless split keyboard with a modular 4th pinky column to easily swap between layouts without re-flashing. One PCB, two configurations, same firmware — populate one pinky switch for 30 keys or two for 32.

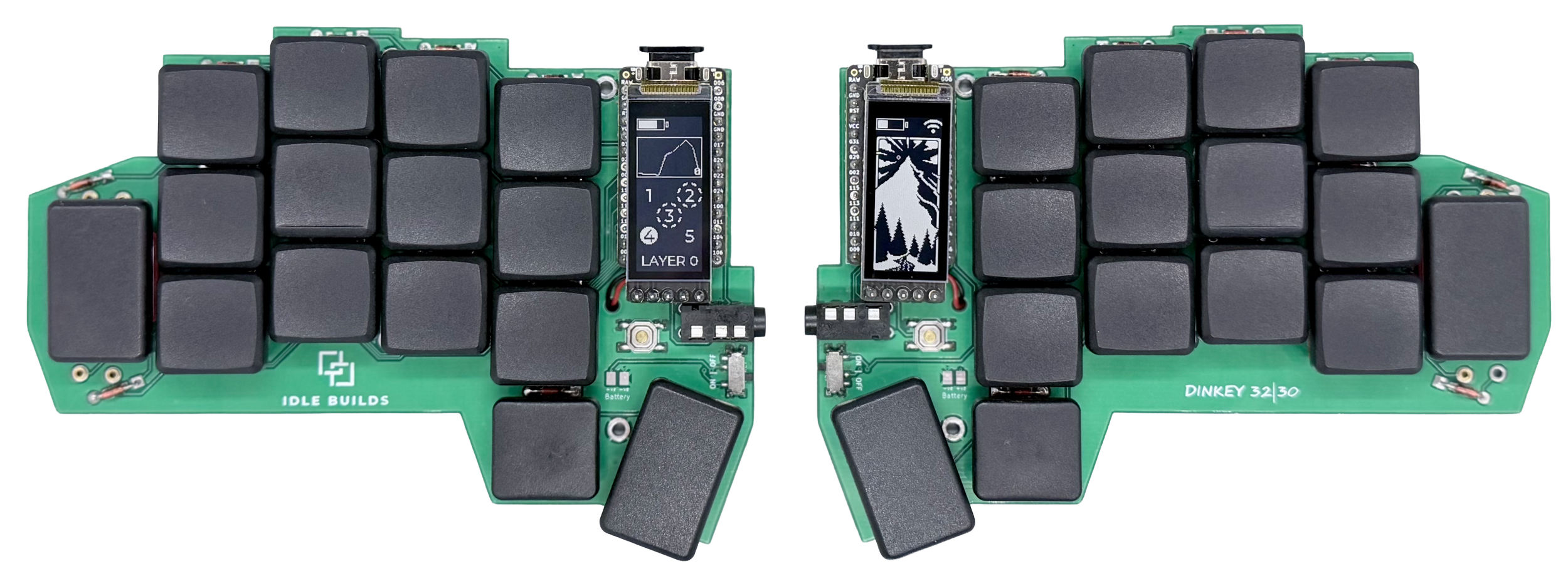

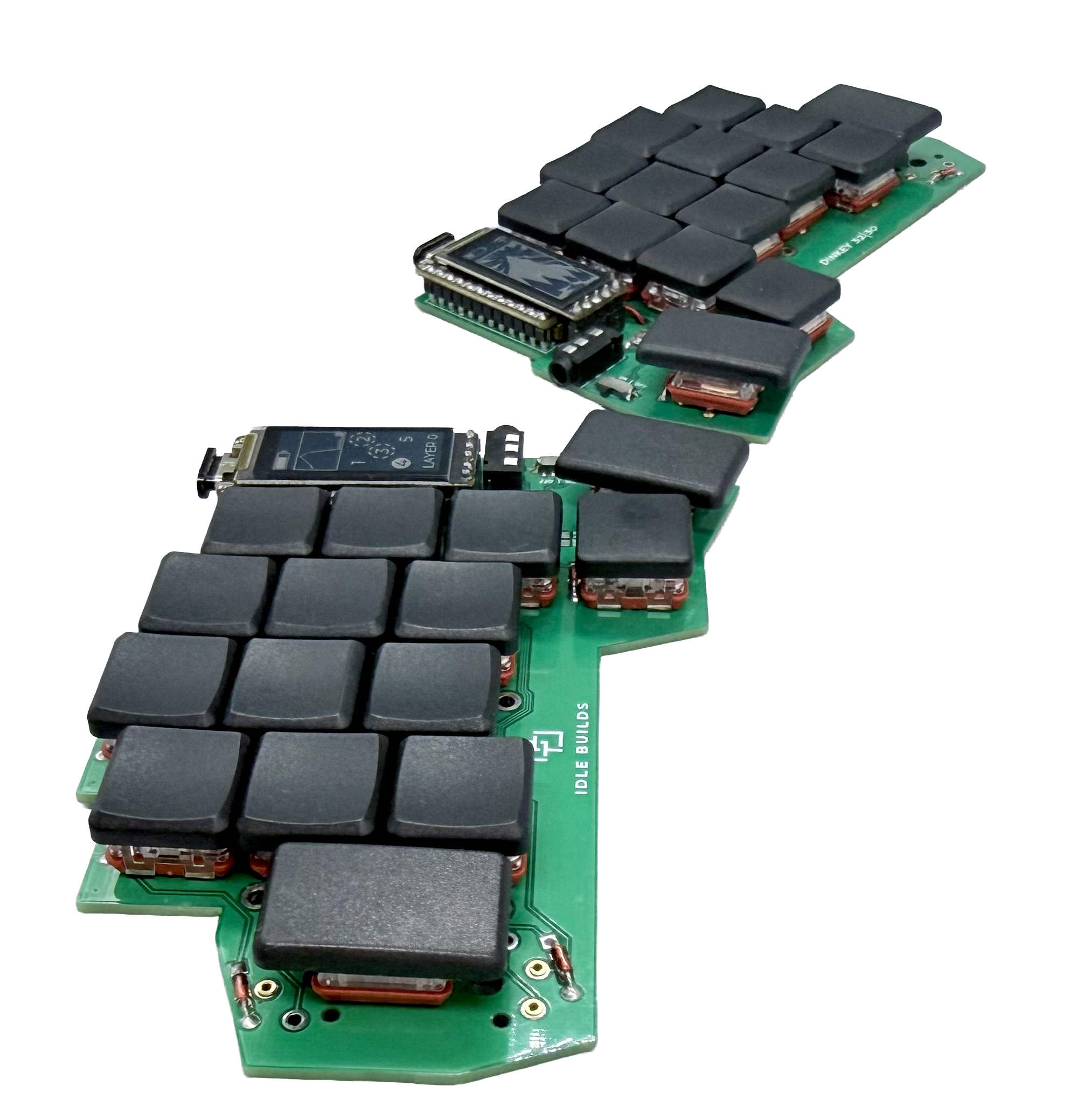

Wireless Builds
Keys: 32/30
Layout: 3×5 column stagger + 2 thumb keys per side
Switches: Kailh Choc V1 (PG1350)
Controller Nice!Nano v2 (nRF52840), (hot-swap)
Display: Nice!View (hot-swap)
Sockets: Mill-Max low profile
Connectivity: Bluetooth 5.0 / USB-C
Battery: 110mAh LiPo
Split: Wireless BLE — no TRRS cable required
Firmware: ZMK / ZMK Studio
Case: Optional and not required

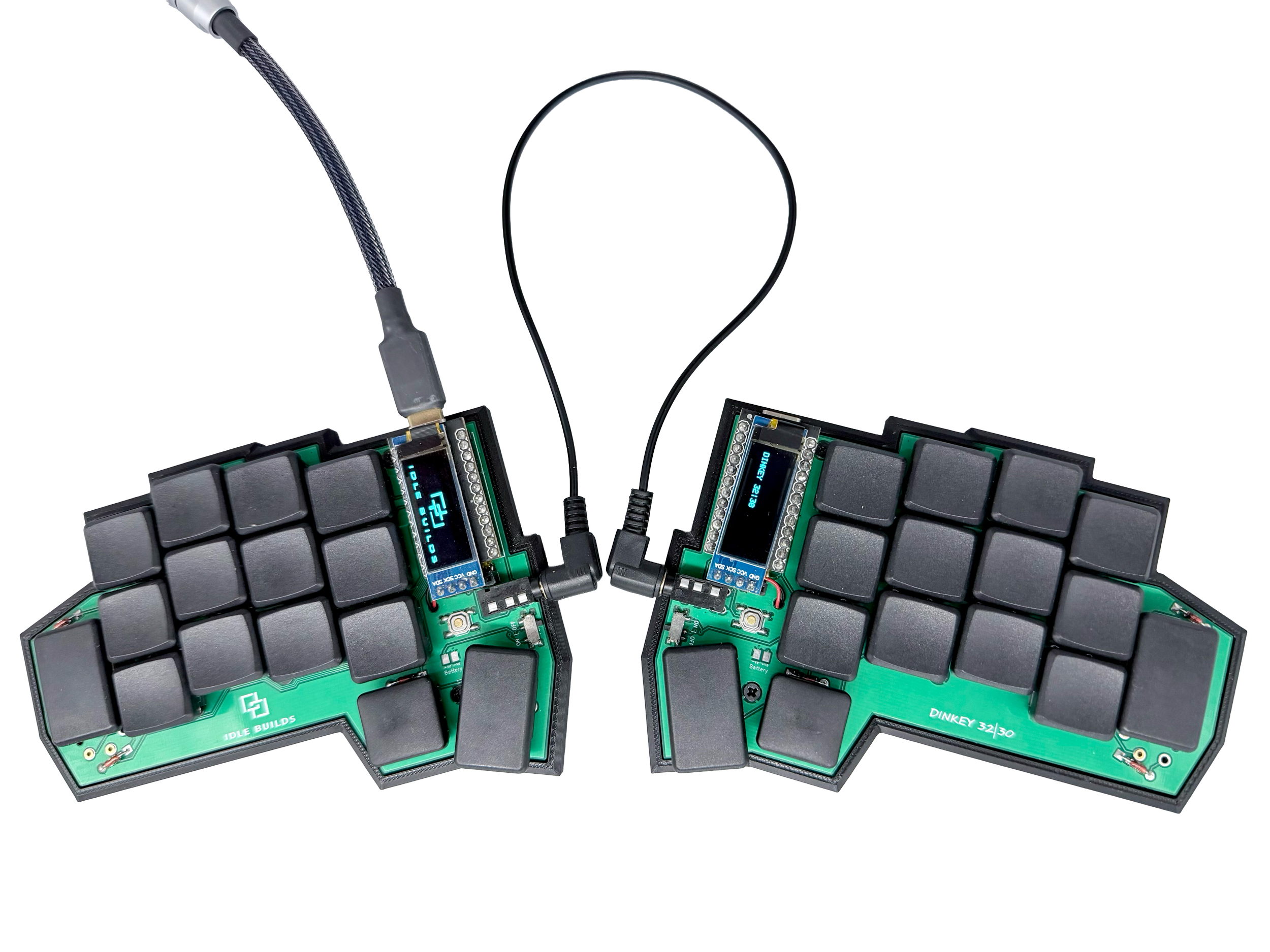

Wired Build
Keys: 32/30
Layout: 3×5 column stagger + 2 thumb keys per side
Switches: Kailh Choc V1 (PG1350)
Controller: Pro Micro (ATmega32U4), (hot-swap)
Display: 128×32 OLED (hot-swap)
Sockets: Kailh(hot-swap)
Connectivity: Wired USB-C
Split: USB-C (TRRS split cable included)
Firmware: QMK / Vial
Case: Optional and not required
firmware
The Dinkey 30 and 32 keymaps are fully customizable without touching any programming or re-flashing by exposing all pinky positions in Vial and ZMK Studio. Assign keys to whichever positions match your build. Switching between 30 and 32-key configurations is as simple as installing or removing switches and updating keymap.
Firmware source and build instructions are available on GitHub.

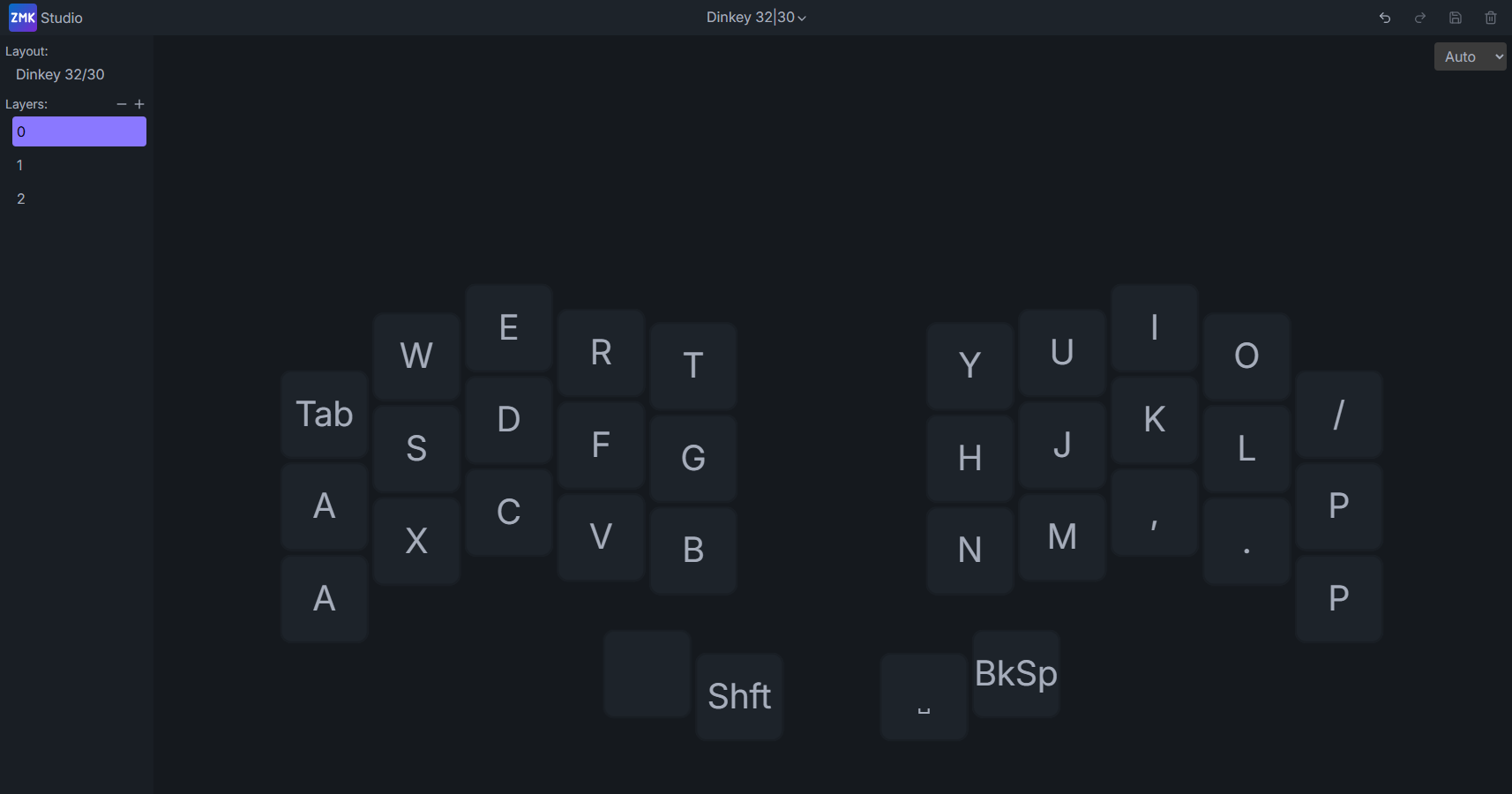

Wireless (ZMK): Remap keys visually in your browser using ZMK Studio — just plug in via USB and connect. Changes save directly to the keyboard.

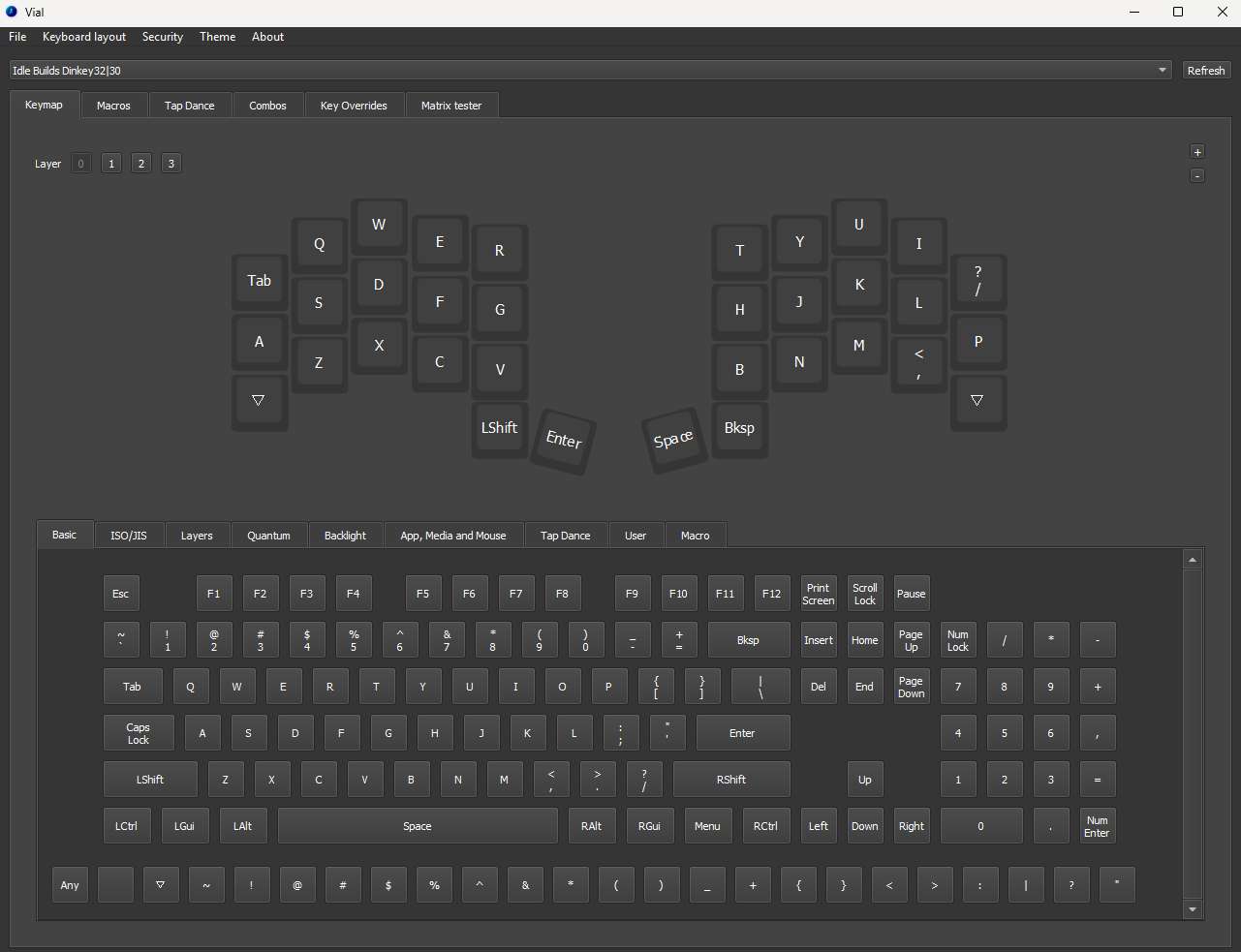

Wired (QMK / Vial): Edit your keymap in real time using Vial . Full QMK support also available.
Build Options

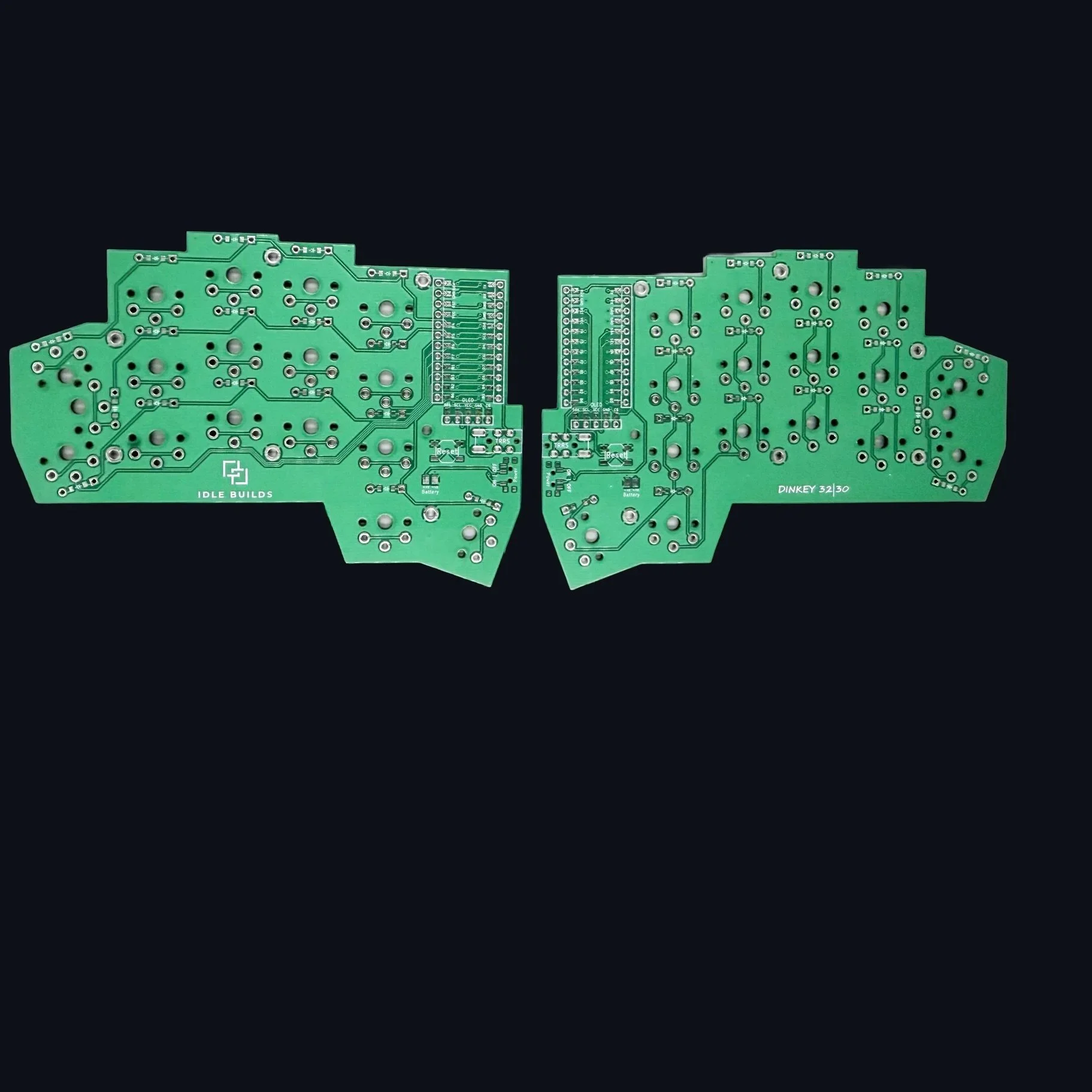

Includes: PCB set (left & right), Pro Micro controllers (×2), Kailh Choc V1 hotswap sockets, diodes, TRRS jacks, reset buttons, and mounting hardware.
3d printed case is not included with complete build and is an optional item below.
Fully assembled and pre-flashed Dinkey 32/30. Ready to go out of the box, just install switches.
3d printed case is not included with complete build and is an optional item below.

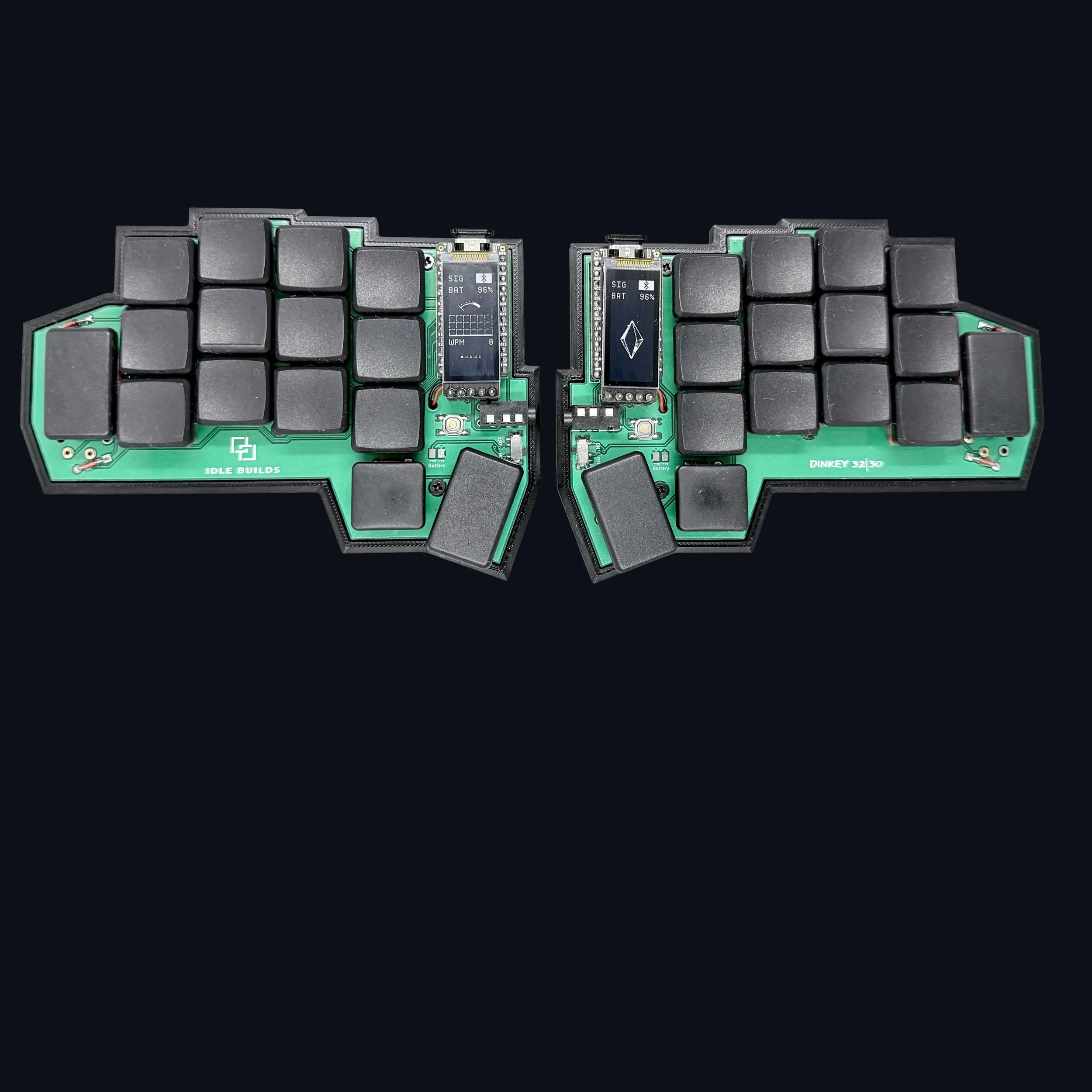

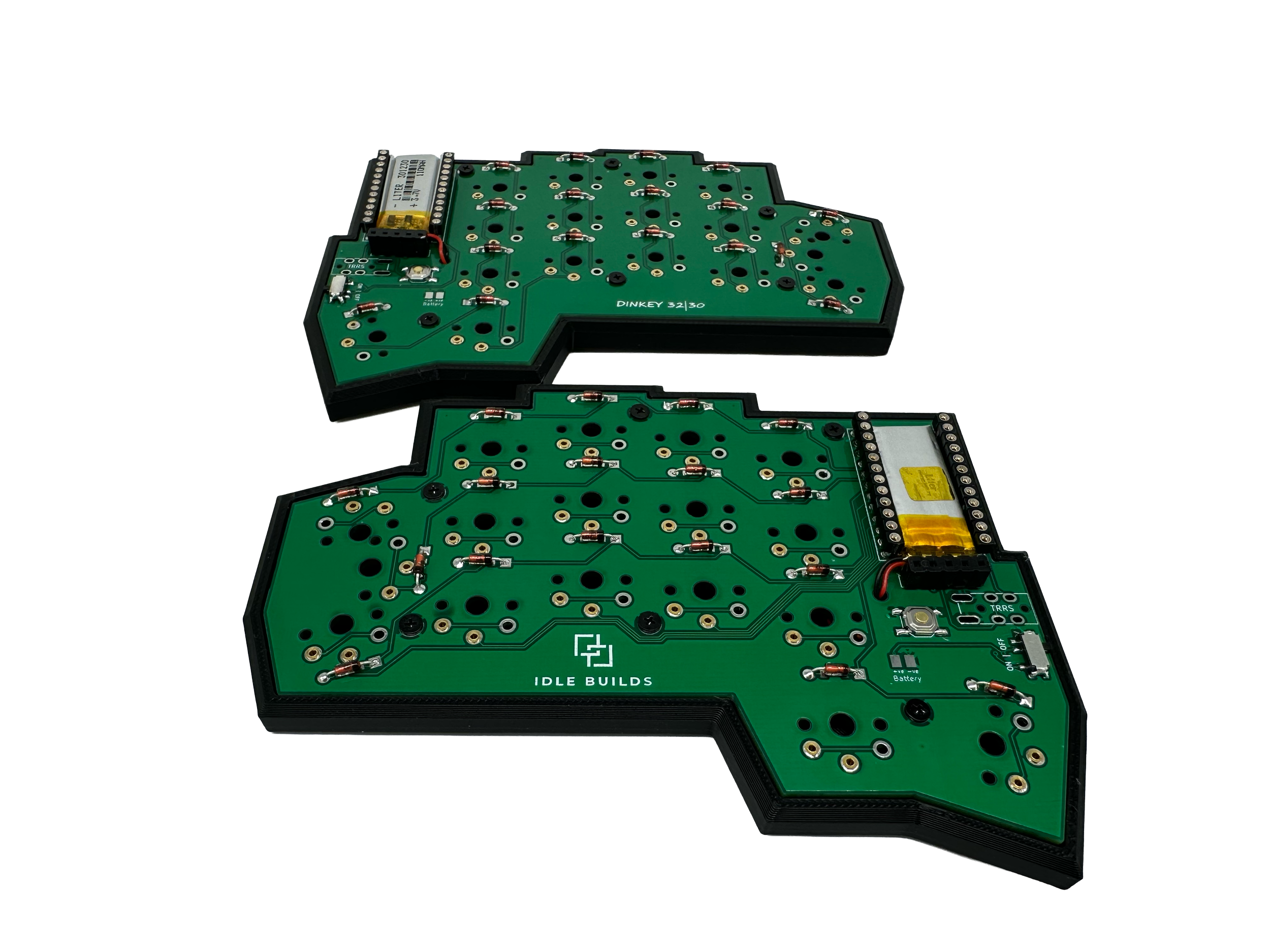

Includes: PCB set (left & right), Nice!Nano v2 controllers (×2) with Mill-Max hotswap sockets, diodes, LiPo batteries (×2), reset buttons, and mounting hardware.
3d printed case is not included with complete build and is an optional item below.
Completely assembled wireless Dinkey 34 with a pre-flashed nice!nano. Ready to go out of the box, just install switches.
3d printed case is not included with complete build and is an optional item below.
